Flush Portlight (PF-)

Flush Portlight (PF-)

Art. 8878
Subject to errors and changes
Read More

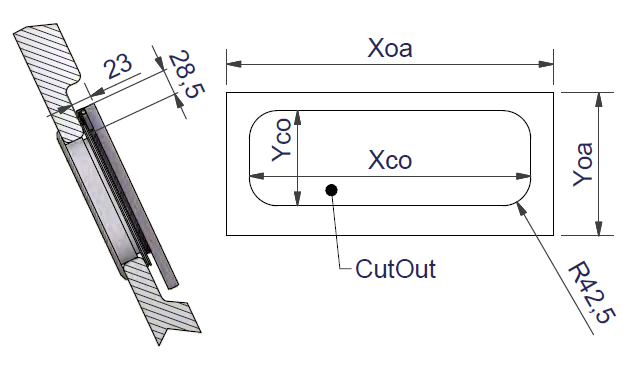

TECHNICAL DRAWING

DATA TABLE

Part no.TypeCutout measureOverall measure/shapeHeight mountedInnerframe
PF-2717Opening Portlight271 x 171 R 42,50333 x 233 R 523mmavailable
PF-XXYYOpening PortlightCustom Xco * Yco R 42,50Custom Xoa * Yoa custom shape23mmavailable
